startScanner Settings
How To

Scanner Settings

CCH Scan
Last update: Reading time 2 minutes
Scanning
    How to modify the Scanner settings

    To modify scanner settings:

    1. Click the Scan tab and select Scanner Settings in the Options group.

    1. Customise the scanner using the options on the Scanner Settings window.

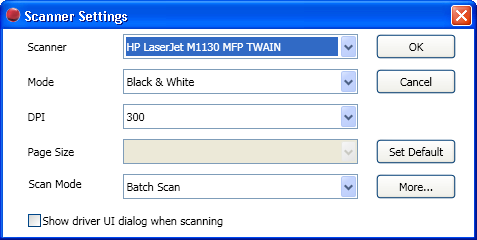

      scanner settings.png

    Scanner Settings Window Options

    The Scanner Settings window contains the following options:

    Option How to Use
    Scanner

    Select the scanner you will be using or From File to import a tif or PDF.

    Note: when you select the From File option it disables all scanner related options.
    Mode

    Select the type of scan e.g. Black & White (recommended for CCH Autofill).
    DPI

    Select the scan quality by specifying the dots-per-inch e.g. 300
    Page Size

    Select the page size that you are scanning e.g. A4 or A5.
    Scan Mode

    Select Flatbed or Batch Scan.

    Note: For flatbed scanners Scan Mode only displays the option Flatbed. The available settings depend on the type of scanner installed and may not match the options described
    Show driver UI dialog when scanning

    Select this check box to display the connected scanner's user interface during scanning, so that you can select specific options that relate to the scanner.
    Set Default

    Sets the scanner to the recommended options for scanning a document. Mode is set to Black and White and the DPI is set to 300.
    More

    Allows you to increase or decrease the brightness and contrast of the scan. These can be automatically calibrated.
    Less

    Click Less to return to the default view.
